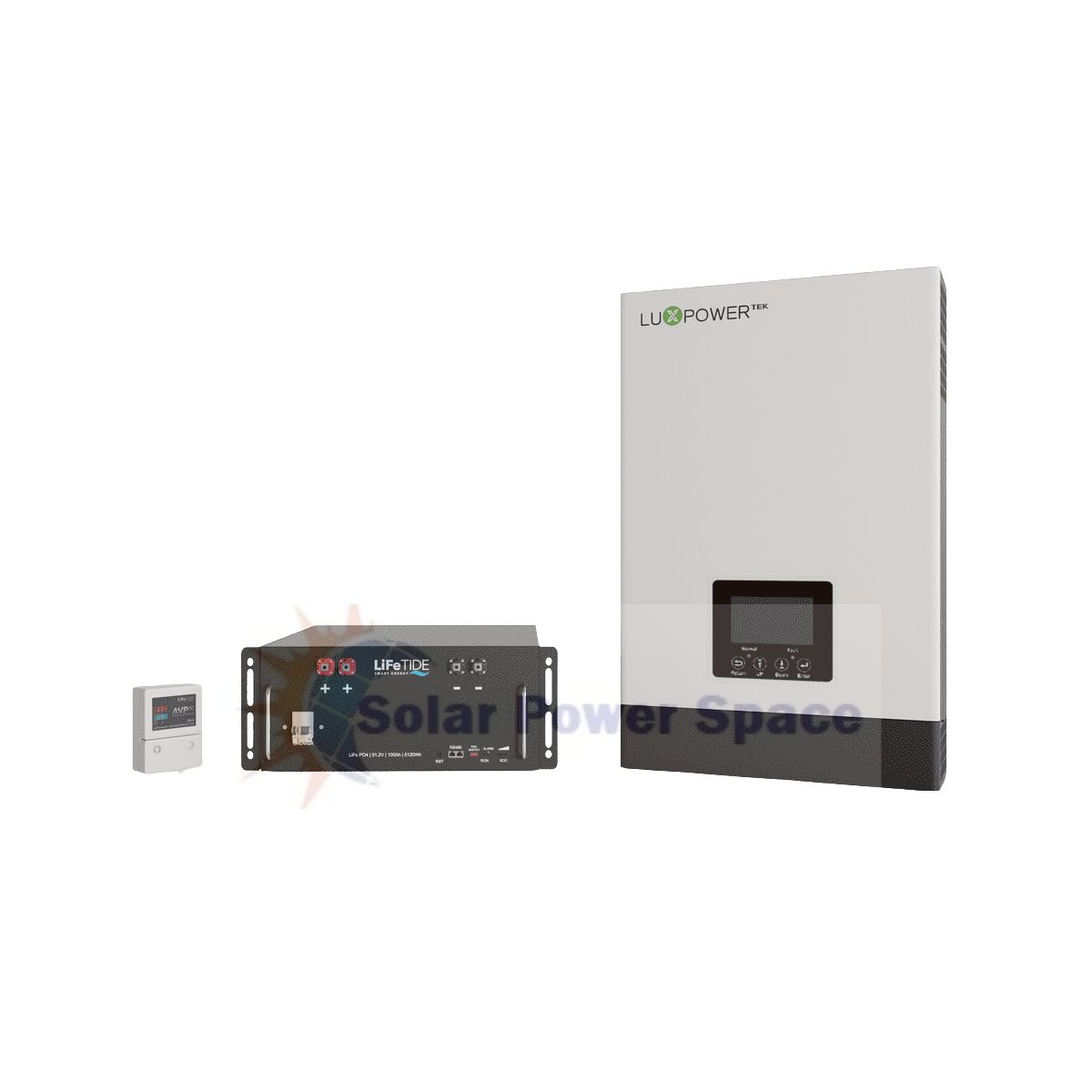

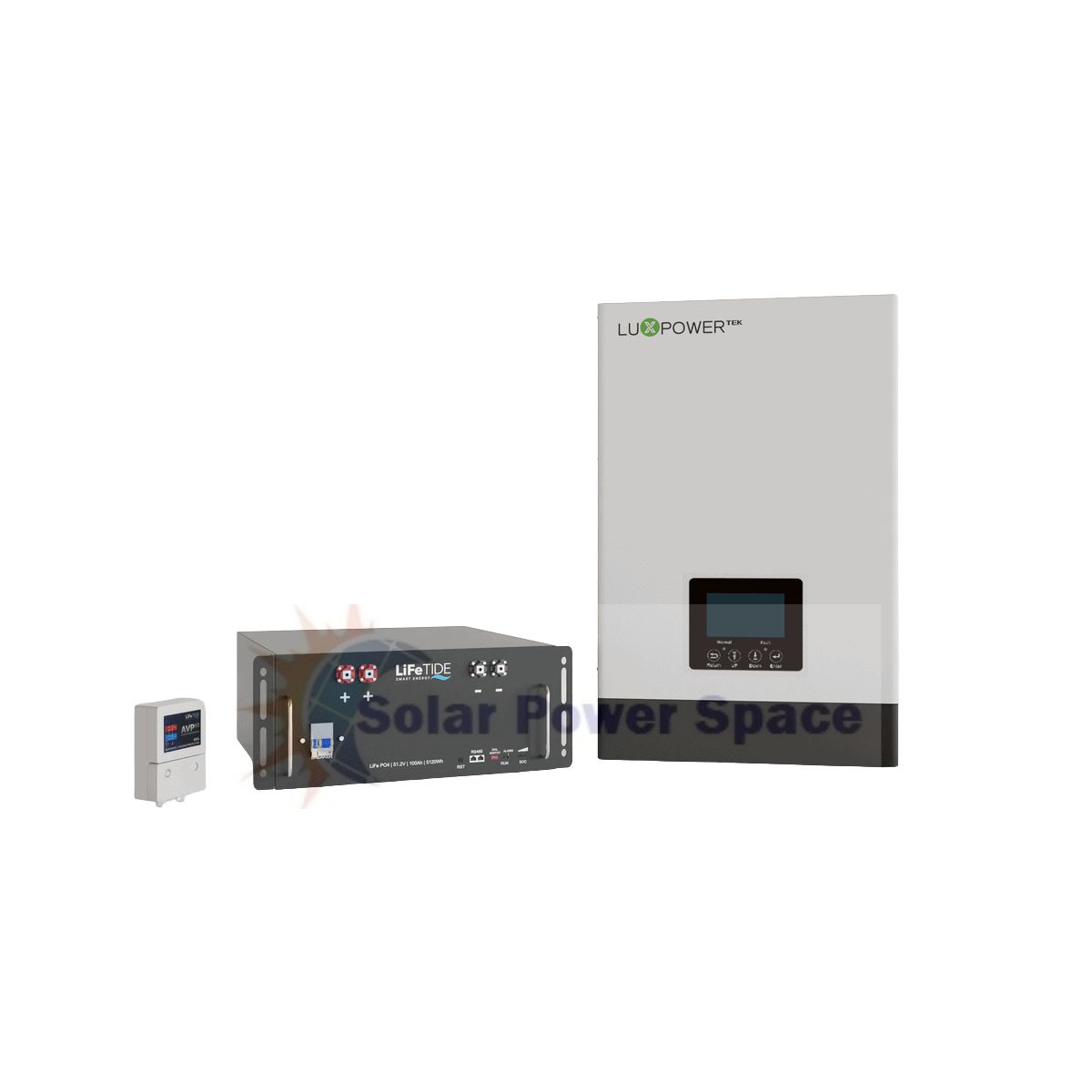

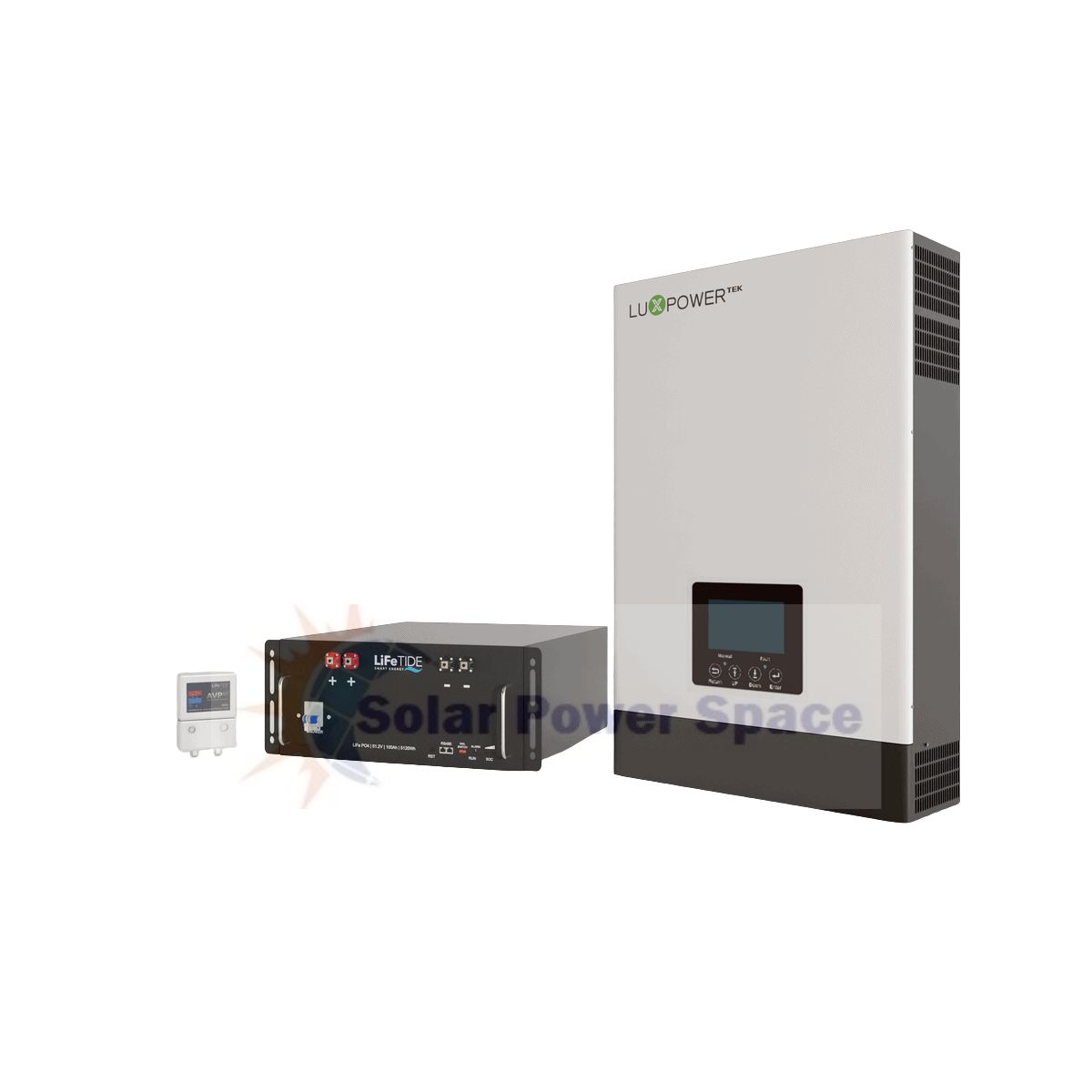

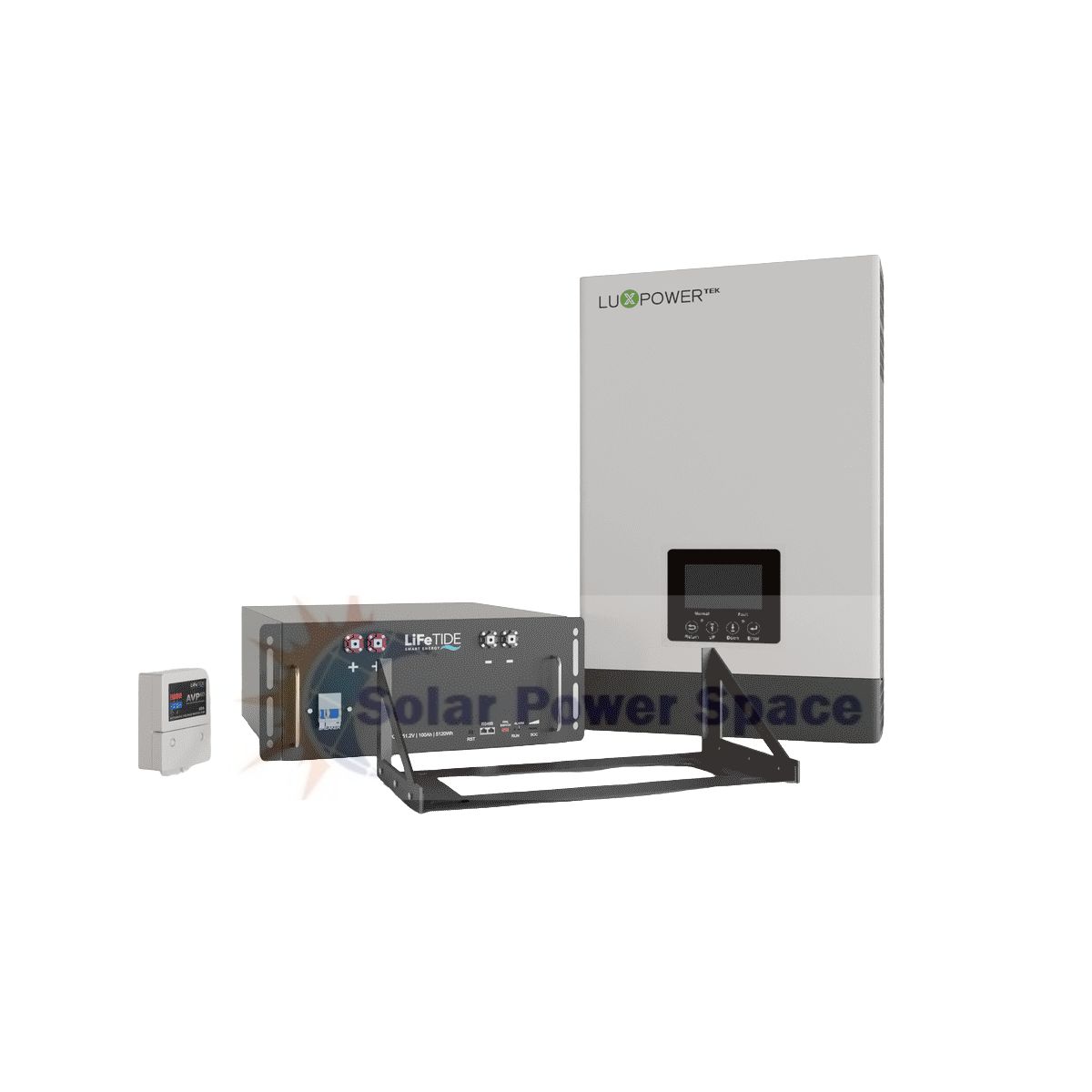

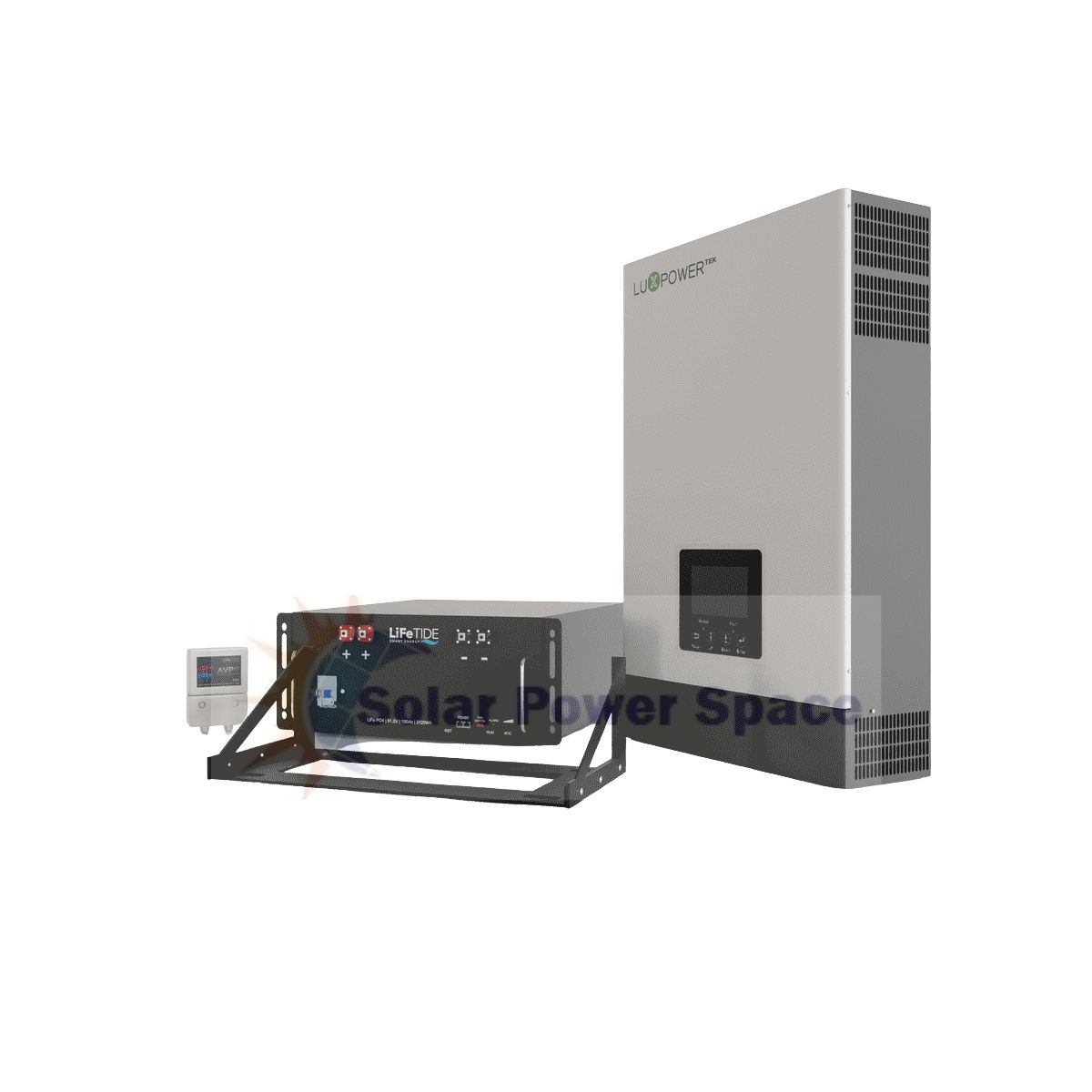

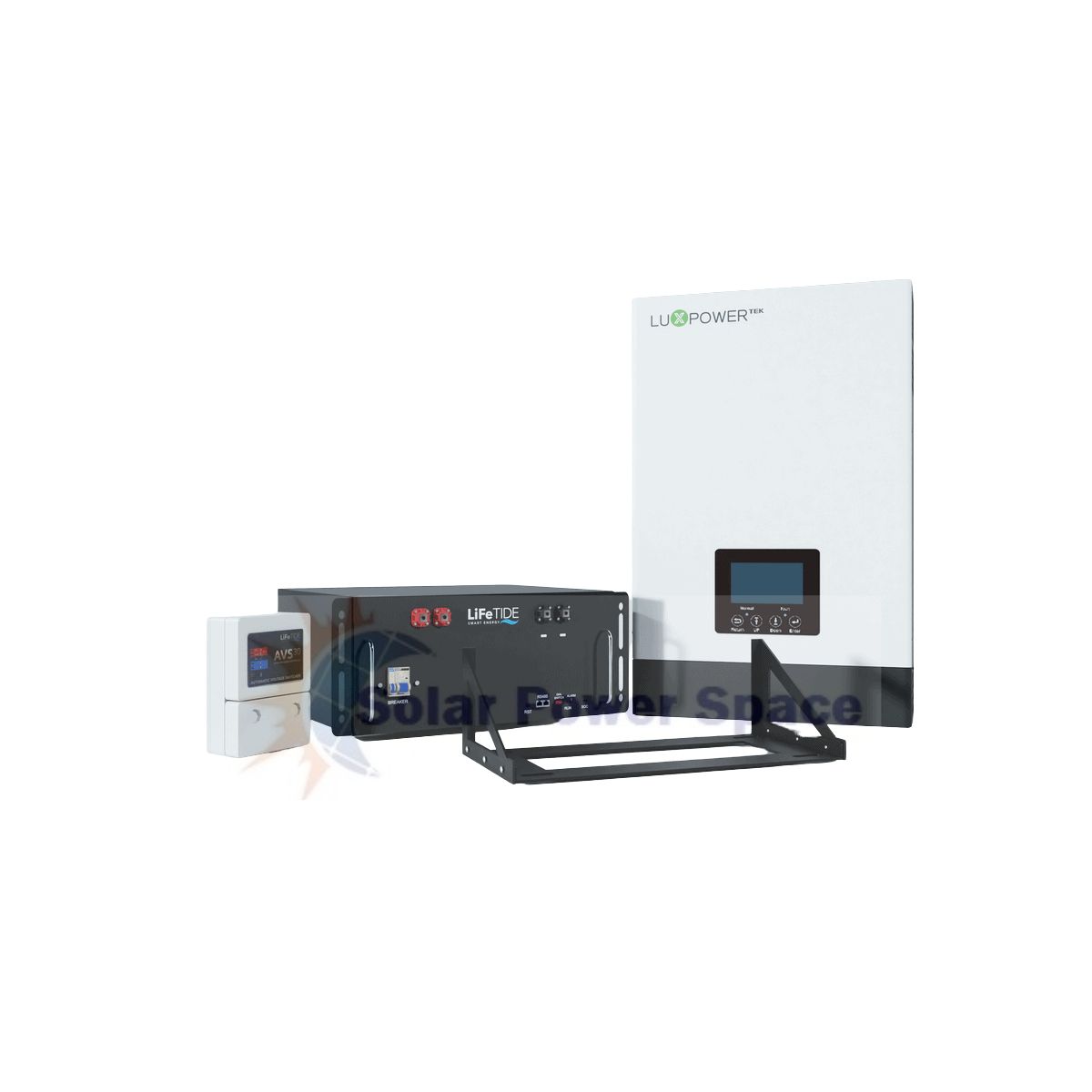

5kW Luxpower Load Shedding Kit | 5120Wh Battery

Name: 5kW Luxpower Load Shedding Kit | 5120Wh Battery
Price: 27499.00 ZAR
Availability: InStock

R27 499,00

5kW Luxpower Load Shedding Kit | 5120Wh Battery

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: LuxPower 5kw SNA5000 Solar Inverter
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
AVS: Automatic Voltage Protector 60A
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Description
Reviews (0)

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

5kW Luxpower Load Shedding Kit | 5120Wh Battery. The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

Buy 5120Wh LiFePO4 Battery – Reliable Off-Grid Storage, 51.2V 100Ah Lithium Battery – Solar & Load Shedding Backup, Long Life LiFePO4 Battery – 6000+ Cycles & Eco-Friendly, Fast Charging Lithium Battery – Renewable Energy Storage, Safe & Durable Lithium Solar Battery – 5-Year Warranty

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

Ultra-reliable Lithium Iron Phosphate Technology.
High Performance Tier One A+ Cells
Power output = 5.12kW (continuous).
Fully rechargeable in 2 hours.

Robust & Durable:

Can be discharged to 100% DoD.
6,000 Cycles @ 80% DoD
99% Efficiency
Laser Welded Cell Connections

Safe & Secure:

Over-charge, over-discharge & short-circuit protection.
Temperature, Voltage and Current Monitoring
Non-combustible & 100% Recyclable.
Smart Battery Monitoring System
Built-In Fire Extinguisher
Environmentally Friendly & Lead-Free
Built-In Circuit Breaker

General Specification:

Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
Nominal Voltage: 51.2V.
Ah Rating: 100Ah @C1, 25°C.
Rack Mount or Cabinet Storage
Maximum Energy Density

Physical Attributes:

Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
Net Weight: 48.0kg .
5 Year Warranty

Voltage

Voltage: 51.2VDC
Nominal Capacity: 100Ah
Watt Hours: 5120Wh
Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
Float: 54V ± 0.2V
Low DC Cutoff: 47V-44V depending on load
Charing Current: 100A (30A – 50A recommended)
Discharging Current: 100A

LuxPower | 5kW | 48V

THE INVERTER

The LuxPower SNA 5000 is a high-quality off-grid inverter that delivers exceptional performance and reliability.

With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of off-grid power systems. It boasts two high voltage MPPTs and a maximum PV input of 6000 Watts, allowing for efficient energy conversion and utilisation.

Buy LuxPower SNA 5000 5kW Off-Grid Inverter – High Efficiency, 5kW LuxPower Solar Inverter – Off-Grid Load Shedding Solution, LuxPower SNA 5000 – Reliable 5kW Pure Sine Wave Inverter, Off-Grid Inverter 5kW – Solar + Lithium Battery Compatible, LuxPower 5kW Solar Inverter – Affordable Backup Power

The LuxPower SNA 5000 is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.

Trust in the LuxPower SNA 5000 for reliable and efficient off-grid power solutions.

Output

Rated Power: 5000W
Parallel Supported: Yes
Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
Normal Output Frequency: 50Hz / 60Hz
Surge Power: 10000VA
Switch Time: 10ms
Wave Form: Pure Sine Wave

Battery

Battery Type Supported: Lithium / Lead-Acid
Normal Voltage: 51.2VDC / 48VDC
Maximum Charging Voltage: 59VDC

Solar

Maximum PV Power: 3200W / 3200W
Number of MPP Trackers: 2
Maximum PV Open Circuit Voltage: 480VDC
MPPT Voltage Range: 100VDC – 385VDC
Maximum Solar Charge Current: 100A
Maximum Solar Input Current: 13A / 13A

Grid

Normal Voltage: 230VAC
AC Voltage Range: 110VAC-280VAC
Maximum Charge Current: 60A
Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit

Ingress Protection: IP20
Relative Humidity: 5% to 95% (Non Condensing)
Operating Temperature Range: 0°C to +50°C
Storage Temperature: -15°C to +60°C
Communication: CAN / RS485/ WIFI / GPRS

PRODUCT SPECIFICATIONS

Weight	65.3 kg
Dimensions	61 × 52 × 72 cm
Brand	LiFeTIDE, Luxpower
Product Type	Load Shedding Kit
System Phase	Single Phase
System Type	Off-Grid
kW Size	5kW
Battery Storage Capacity	5120Wh/battery
Amp Hours (Ah)	100Ah/battery
Battery Cycles	>6000/battery
Depth of Discharge (DoD)	80%
Energy Storage	Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units	10 Inverters, 16 Batteries
Maximum PV Array Power	6000W/inverter
Mounting	Battery Cabinet, Wall Mount
Voltage	48V
Warranty	Manufacturer Warranty Per Item
