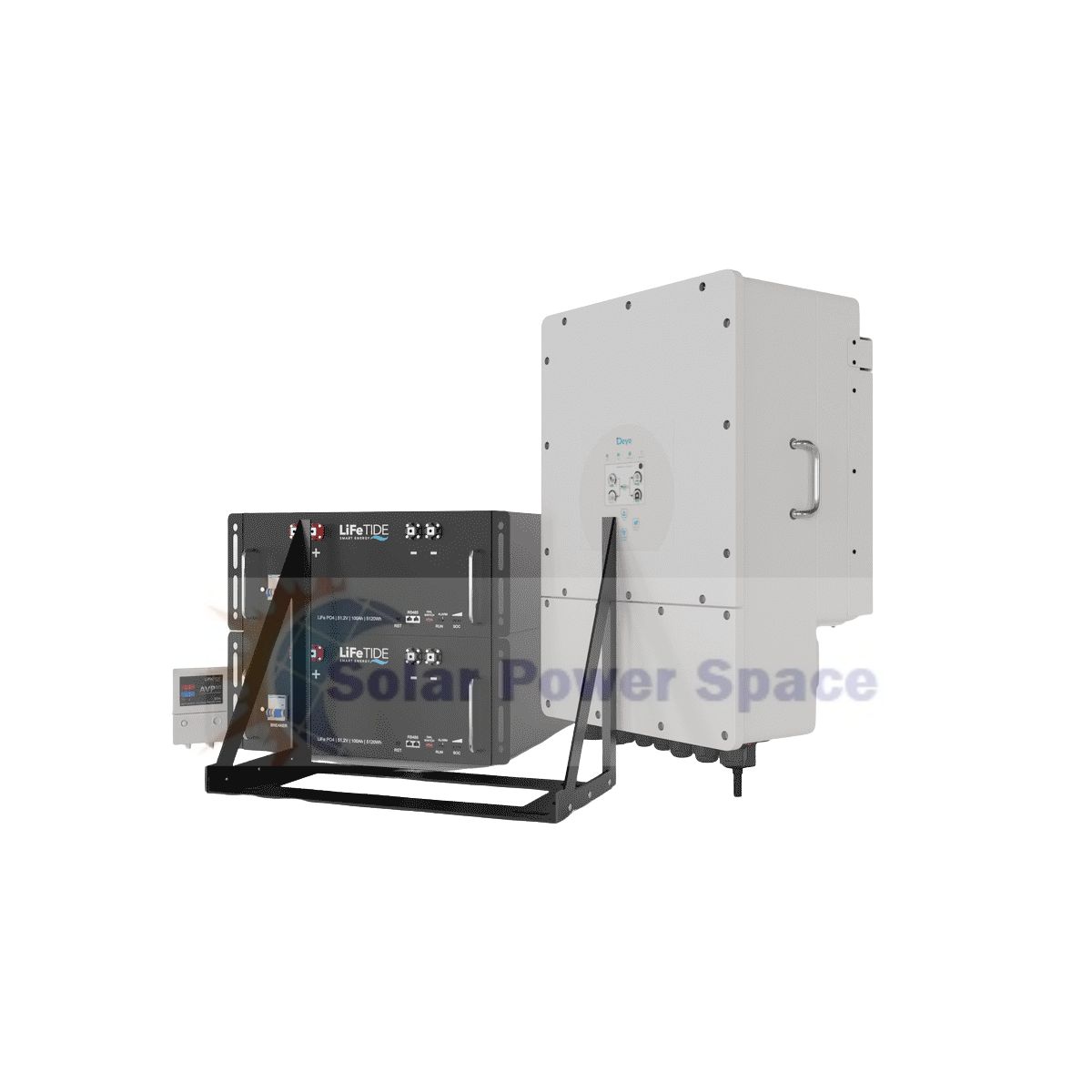

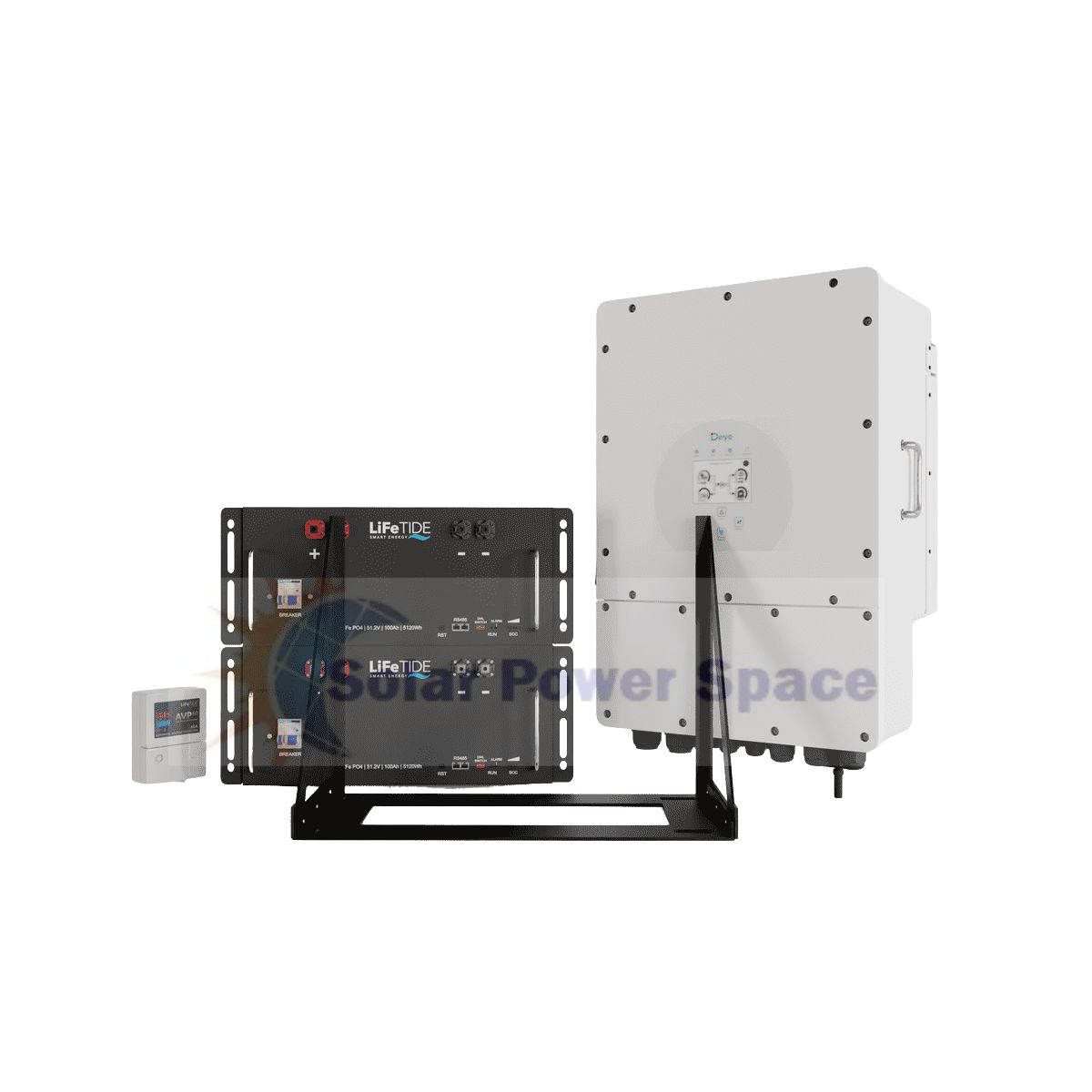

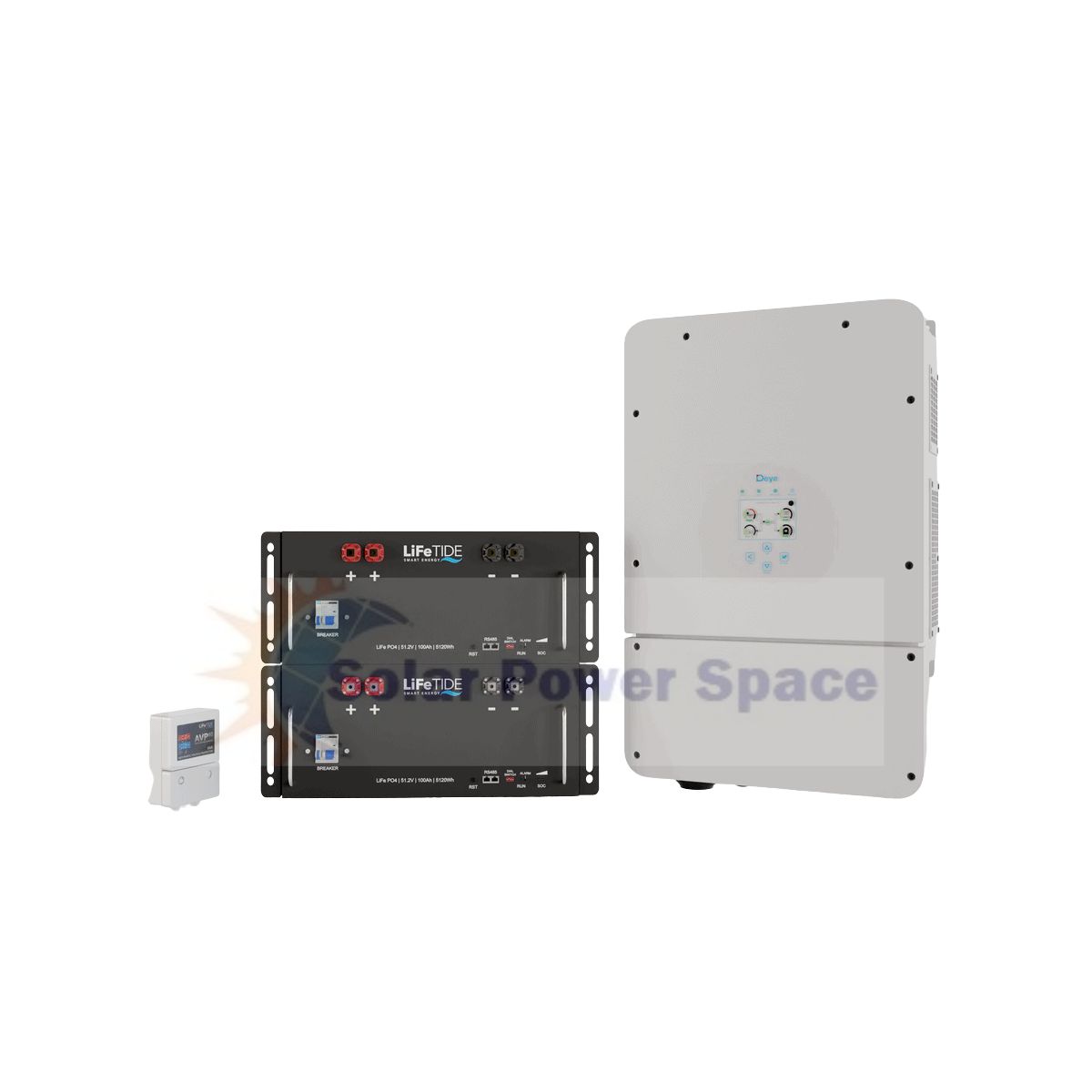

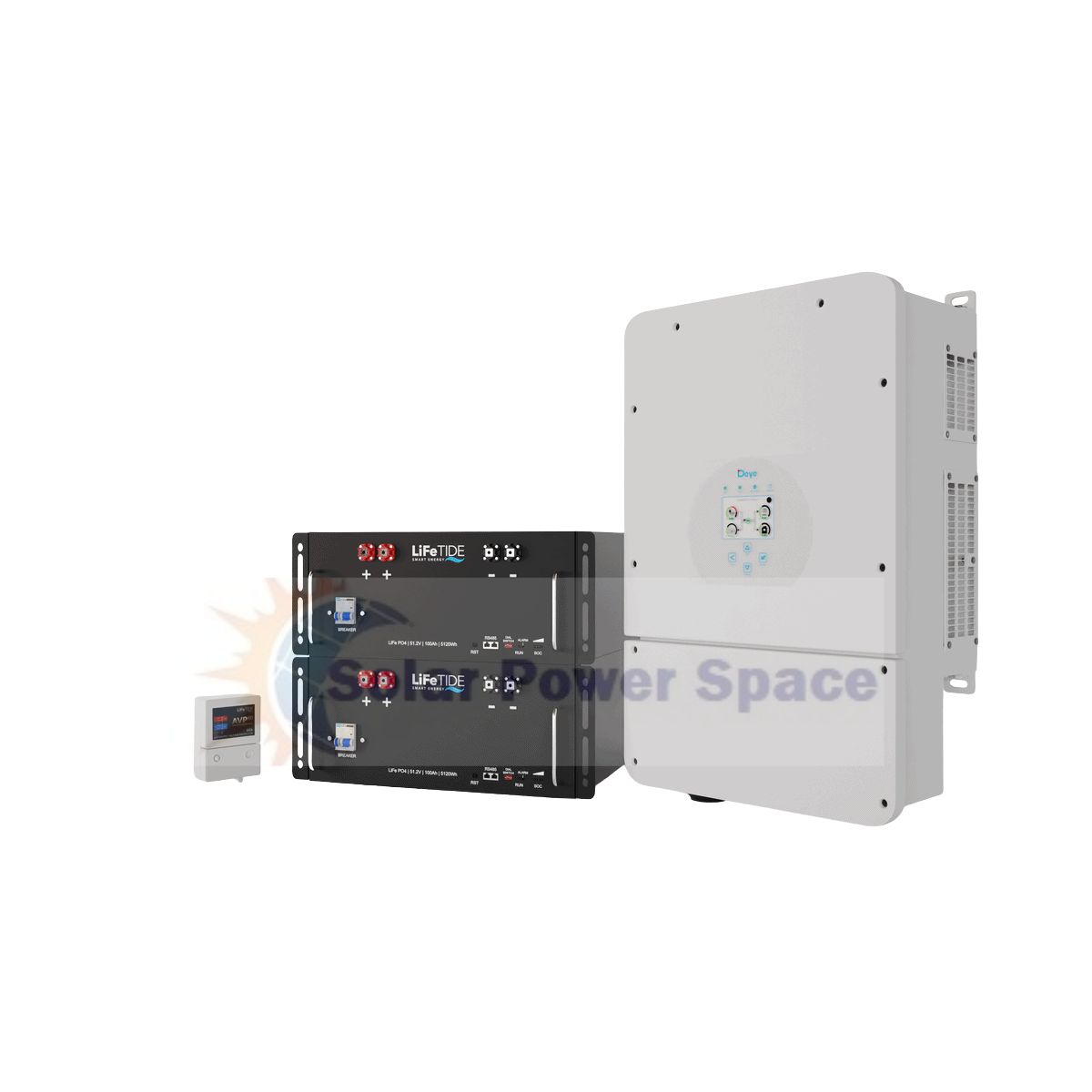

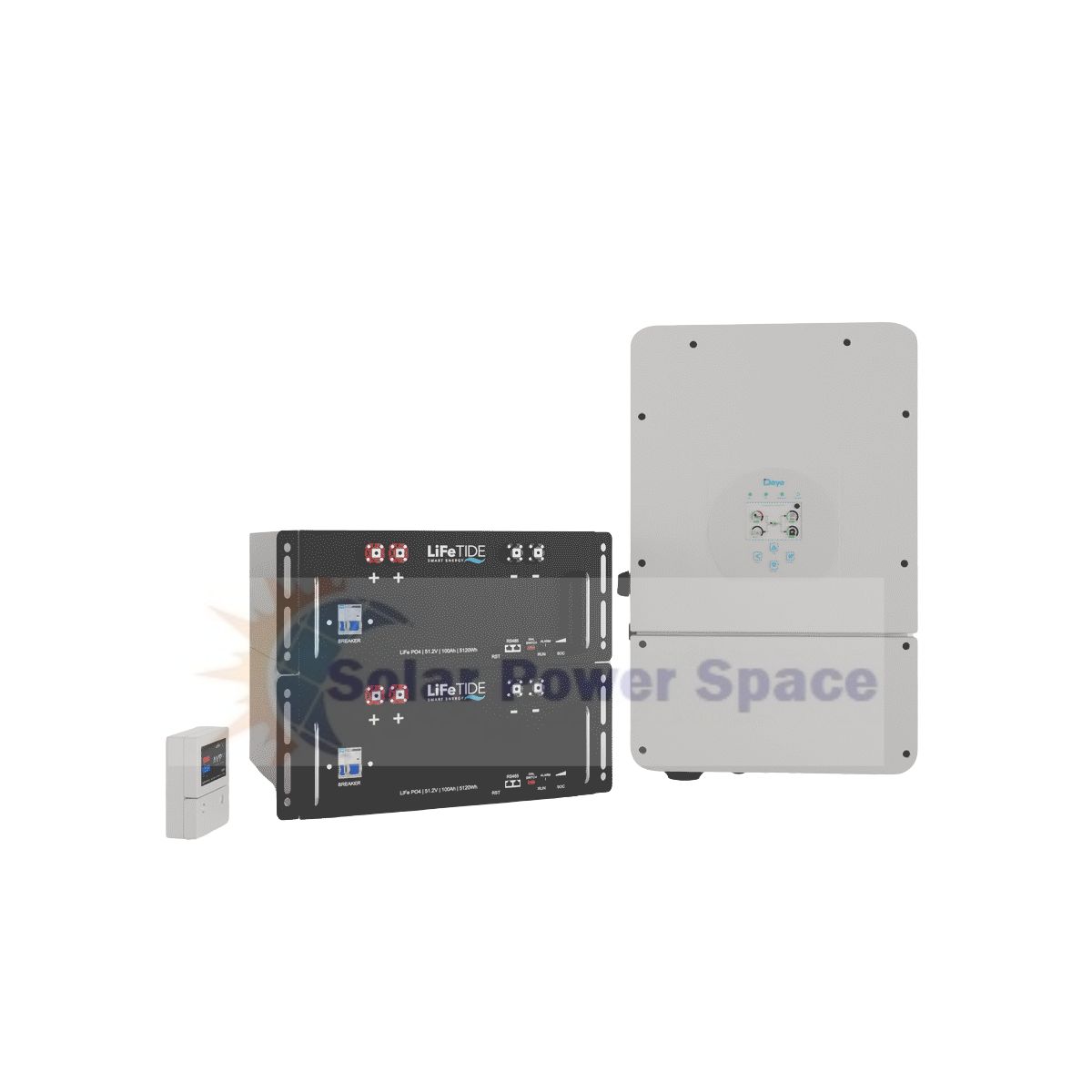

8kW Deye Load Shedding Kit | 2x 5120Wh Batteries

Name: 8kW Deye Load Shedding Kit | 2x 5120Wh Batteries
Price: 60399.00 ZAR
Availability: InStock

R60 399,00

8kW Deye Load Shedding Kit | 2x 5120Wh Batteries

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Deye 8kw Hybrid Solar Inverter
BATTERIES: 2x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.

BUY BUNDLE & COMPLETE YOUR SOLAR SYSTEM [PRICE FOR ALL : R62.399]

1 × 60 Amp Automatic Voltage Protector

R849,00

1 × 10kW AC Essentials Distribution Board

R1 799,00


1 × DC Breaker: 2x Nader 125A DC60V-80V – 1 Pole

R549,00

Category: Load Shedding Kit Tags: 5120Wh Batteries, 8kW Deye, Hybrid Inverter, Load Shedding Kit, Solar Batteries, Solar Inverter, Solar Power Space, Solar System Acessories Brand: Deye, LifeTide

Description
Reviews (0)

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

8kW Deye Load Shedding Kit | 2x 5120Wh Batteries. The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

The 8kW Deye Load Shedding Kit delivers reliable off-grid and hybrid energy. Includes 2x LiFePO4 5120Wh batteries for long-lasting power storage. Features the Deye 8kW hybrid inverter with dual MPPTs for maximum efficiency. Ideal for load shedding protection in South Africa. Suited for off-grid living in Australia’s rural and urban homes. Covers essential loads in Johannesburg, Cape Town, Durban, and Pretoria. A trusted solar backup solution for Namibia, Botswana, and Zimbabwe. Designed for Sydney, Melbourne, Brisbane, Perth, and Adelaide solar homes. Provides 10.24kWh of battery capacity with high-performance LiFePO4 cells.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Ultra-reliable Lithium Iron Phosphate Technology.
High Performance Tier One A+ Cells
Power output = 5.12kW (continuous).
Fully rechargeable in 2 hours.

Robust & Durable:

Can be discharged to 100% DoD.
6,000 Cycles @ 80% DoD
99% Efficiency
Laser Welded Cell Connections

Safe & Secure:

Over-charge, over-discharge & short-circuit protection.
Temperature, Voltage and Current Monitoring
Non-combustible & 100% Recyclable.
Smart Battery Monitoring System
Built-In Fire Extinguisher
Environmentally Friendly & Lead-Free
Built-In Circuit Breaker

General Specification:

Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
Nominal Voltage: 51.2V.
Ah Rating: 100Ah @C1, 25°C.
Rack Mount or Cabinet Storage
Maximum Energy Density

Physical Attributes:

Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
Net Weight: 48.0kg .
5 Year Warranty

Voltage

Voltage: 51.2VDC
Nominal Capacity: 100Ah
Watt Hours: 5120Wh
Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
Float: 54V ± 0.2V
Low DC Cutoff: 47V-44V depending on load
Charing Current: 100A (30A – 50A recommended)
Discharging Current: 100A

Deye Hybrid | 8kW | 48V

THE INVERTER

Experience the incredible versatility of the Deye 8kW Solar Inverter with its innovative blending technology and the ability to cater to both Essential and Non-Essential Loads.

Ultra-reliable with over 6,000 charge cycles at 80% depth of discharge. Built with over-charge, over-discharge, and short-circuit protection. Recharge fully in just 2 hours with fast charging capability. Expandable system supports up to 16 inverters and 16 batteries in parallel. Achieves 97.6% maximum efficiency with advanced hybrid technology. Weather-resistant with IP65 protection for outdoor durability. Offers grid-tied, hybrid, and load shedding modes for flexibility. Provides silent, fan-cooled operation below 30dB noise levels. Perfect for Western Cape coastal conditions and Gauteng high-demand areas.

This exceptional inverter offers a wide range of applications:

Grid-Tied Inverter: Utilise the inverter with solar panels only, seamlessly connecting to the grid to maximise your solar energy production and reduce your reliance on the utility.
Load Shedding Solution: Use the inverter with batteries only, providing a reliable backup power source during load shedding or grid outages. Keep your essential loads powered and maintain your daily activities uninterrupted.
Hybrid Solution: Enjoy the best of both worlds by harnessing the power of solar energy and the grid. The Deye 8kW Solar Inverter enables you to charge your batteries using solar panels and the grid, ensuring a continuous power supply during outages or load shedding.

Battery Input Data

Battery Type: Lead-acid or Li-lon.
Battery Voltage Range (V): 40-60V.
Max.Charging Current (A): 190A.
Max.Discharging Current (A): 190A.
Charging Curve: 3 Stages/Equalization.
External Temperature Sensor: Optional.
Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

PV String Input Data

Max. DC Input Power (W): 10400W.
PV Input Voltage (V): 370V (100V – 500V).
MPPT Range (V): 125V – 425V.
Full Load DC Voltage Range: 240V – 425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 18A+18A.
No.of MPPT Trackers: 2.
No.of strings per MPPT Tracker: 2+2.

AC Output Data

Rated AC Output and UPS Power (W): 8000W.
Max. AC Output Power (W): 8800W.
Peak Power (off grid): 2 times of rated power, 10 S.
AC Output Rated Current (A): 33.4A/35A.
Max. AC Current (A): 38.3A/40A.
Max Continuous AC Passthrough (A): 50A.
Power Factor: 0.8 leading to 0.8 lagging.
Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
Grid Type: Split phase / 2/3 phase / Single Phase.
Current Harmonic Distortion: THD<3%(Linear Load<1.5%).

General Data

Operating Temparature Range (C): -25-60C, >45C Derating
Cooling: Fan
Noise(dB): <30
Communication with BMS: RS485;CAN
Weight (Kg): 20.5
Size (Length x Widthx Height mm): 670 x 420 x 233mm
Protection Degree: IP65
Installation Style: Wall mounted
Warranty: 5 Years

Deye 8kW Hybrid Inverter

Scale Up Over Time

With the flexibility of 2 MPPT’s (Maximum Power Point Trackers), you can start with just one MPPT and expand to utilise the second MPPT at a later date. This scalability allows you to adapt your solar system to your evolving needs and budget.

Need Even More Power

The Deye 8kW Solar Inverter offers the ability to scale up your system by including up to 16 units in parallel. Whether you’re expanding your energy capacity for residential or commercial purposes, this inverter has you covered.

Experience Higher Yields and Reduced Electricity Bills

Improve self-consumption ratio up to 80% for maximum energy utilisation.Reduce your electricity bill with a DC/AC ratio up to 1.3, optimising energy conversion.Designed for double-side PV modular systems, ensuring efficient power generation.Benefit from a Two MPPT design for enhanced performance and flexibility.Achieve maximum efficiency of 97.6% for optimal energy production.

User-Friendly and Convenient

Enjoy easy operation with the LCD touch screen and intuitive buttons.Compatible with both lithium-ion and lead-acid batteries for versatile energy storage options.Monitor your system effortlessly through a web browser or mobile app.

Reliable and Protected

Equipped with PV lightning protection, anti-islanding protection, and leakage current protection.Offers IP65 protection, ensuring durability in various weather conditions.Automatically switches from Grid-Tied to Off-Grid mode within 5ms for uninterrupted power supply.Prevents system feeding into the grid with the zero export function. NRS Approved.Fast reaction time of within 200ms in zero export mode.Smart and Versatile:

Programmable charging and discharging schedules for customised energy management.Compatible with both wind turbines and solar panels as DC input power sources.Paralleling capability of up to 16 units for higher system power.Allows retrofitting of existing solar systems into energy storage systems.

Experience the versatility and scalability of the Deye 8kW Solar Inverter, empowering you to customise and optimise your solar energy system over time. Enjoy reliable power, uninterrupted performance, and the flexibility to adapt to your energy needs.

PRODUCT SPECIFICATIONS

Weight	132.40 kg
Dimensions	61 × 52 × 92 cm
Brand	LiFeTIDE, Deye
Product Type	Load Shedding Kit
System Phase	Single Phase
System Type	Hybrid
kW Size	8kW
Battery Storage Capacity	5120Wh/battery
Amp Hours (Ah)	100Ah/battery
Battery Cycles	>6000/battery
Depth of Discharge (DoD)	80%
Energy Storage	Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units	16 Batteries, 16 Inverters
Maximum PV Array Power	10400W/inverter
Mounting	Battery Cabinet, Wall Mount
Voltage	48V
Warranty	Manufacturer Warranty Per Item

Optimised for Queensland, Victoria, and Western Australia installations. Seamless switchover between grid and off-grid in under 5ms. Built-in WiFi/RS485 monitoring for remote system management. Compatible with both lithium-ion and lead-acid batteries. Enhances energy independence with over 10kW PV input per inverter. Save money with reduced Eskom reliance and lower electricity bills. Backed by manufacturer warranties for inverter and batteries.
