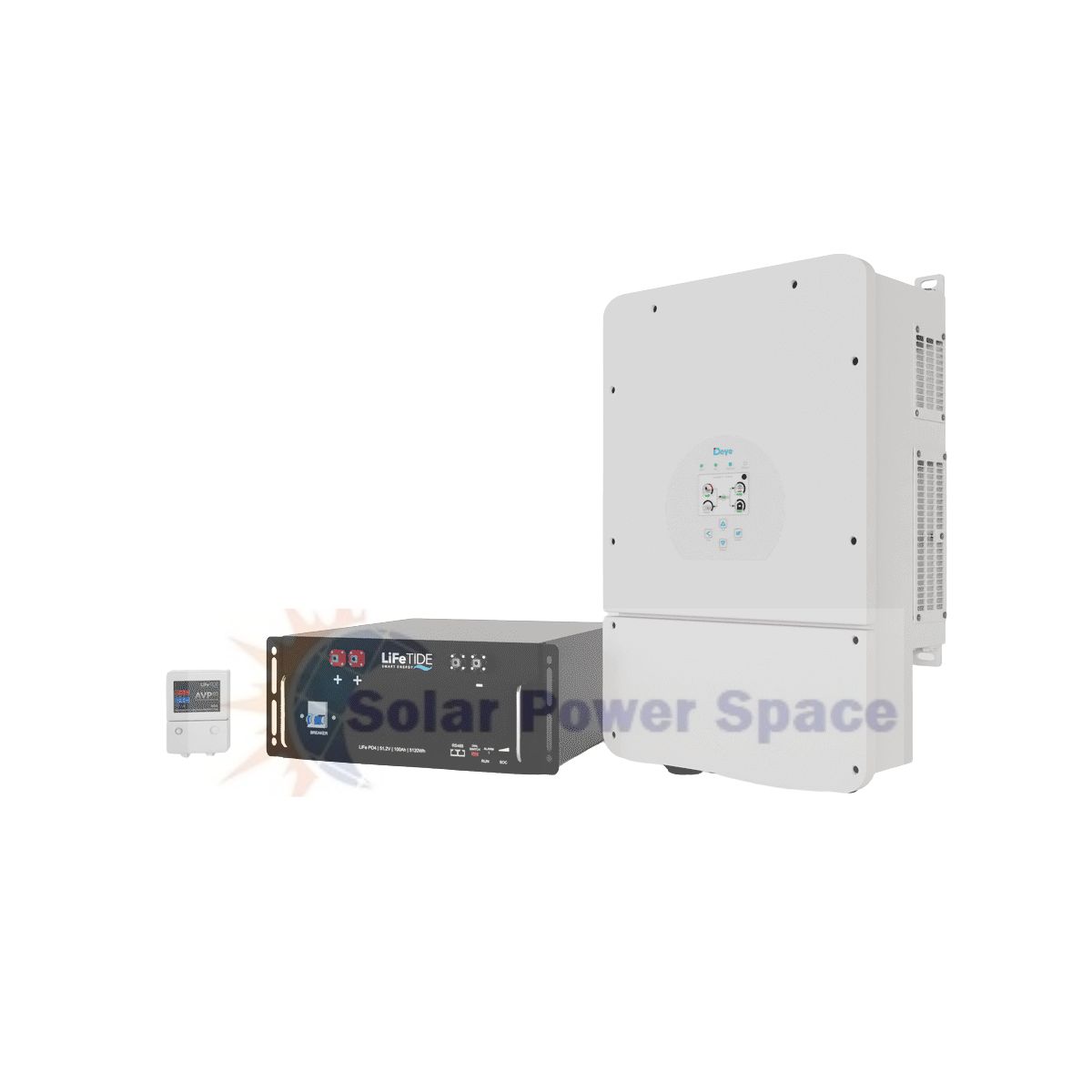

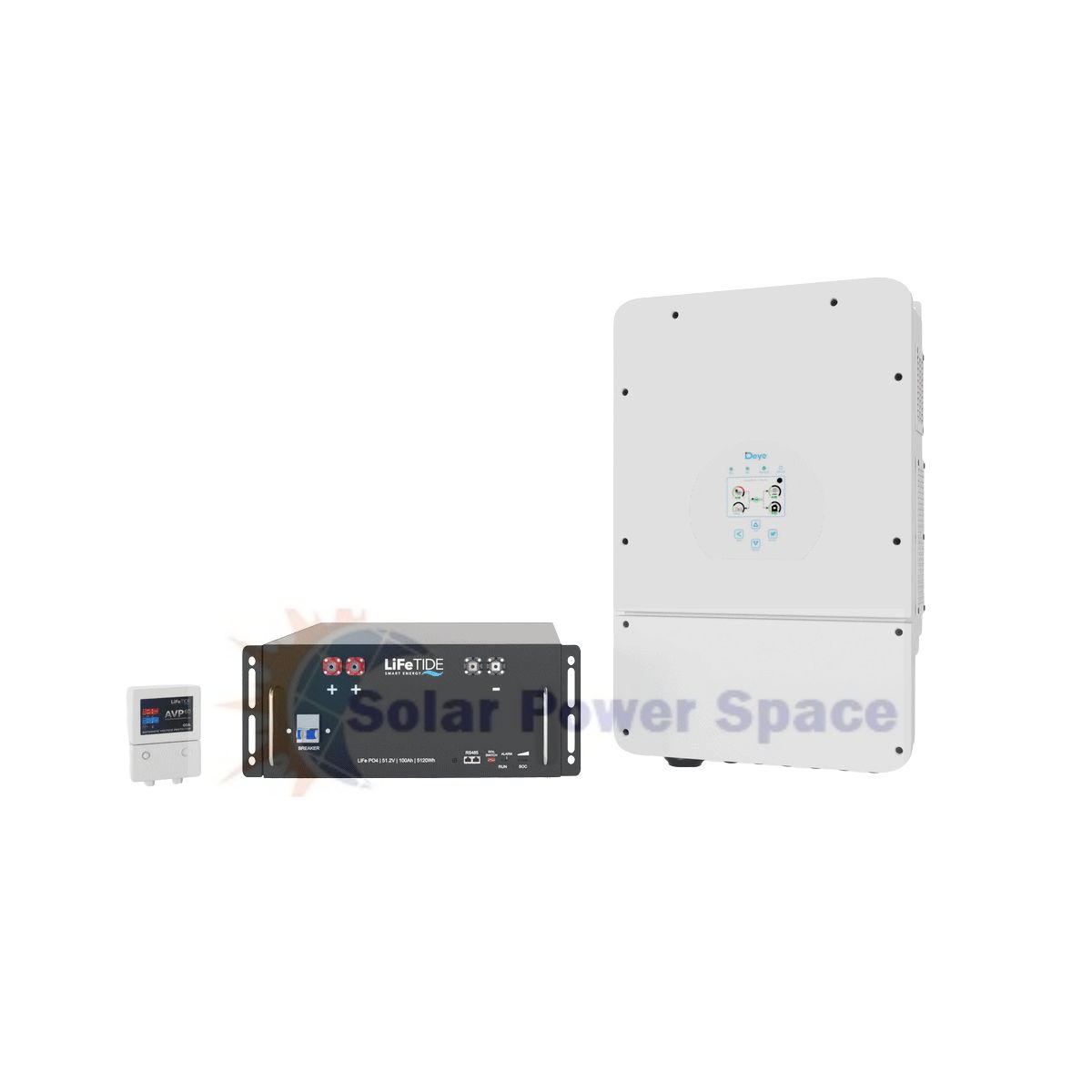

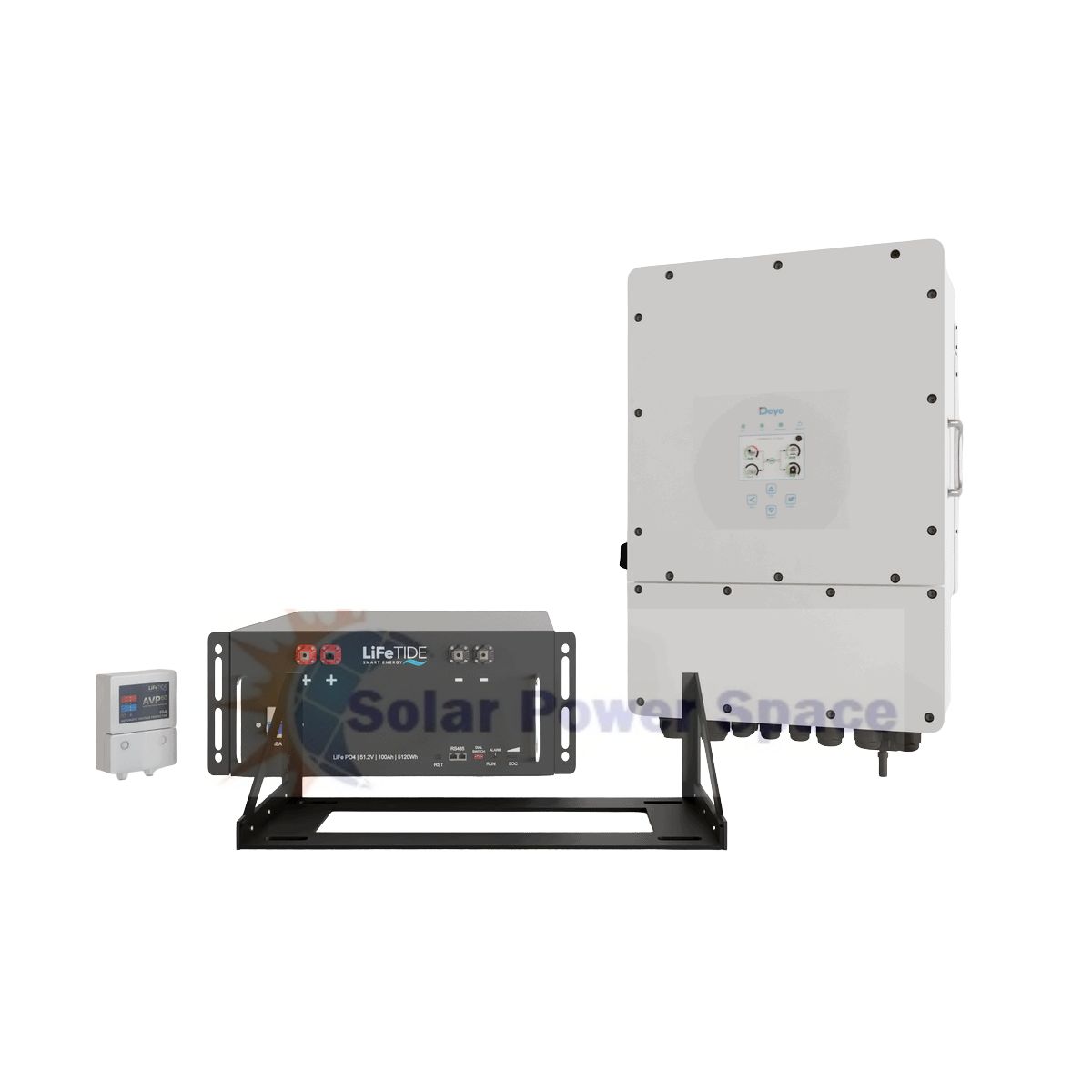

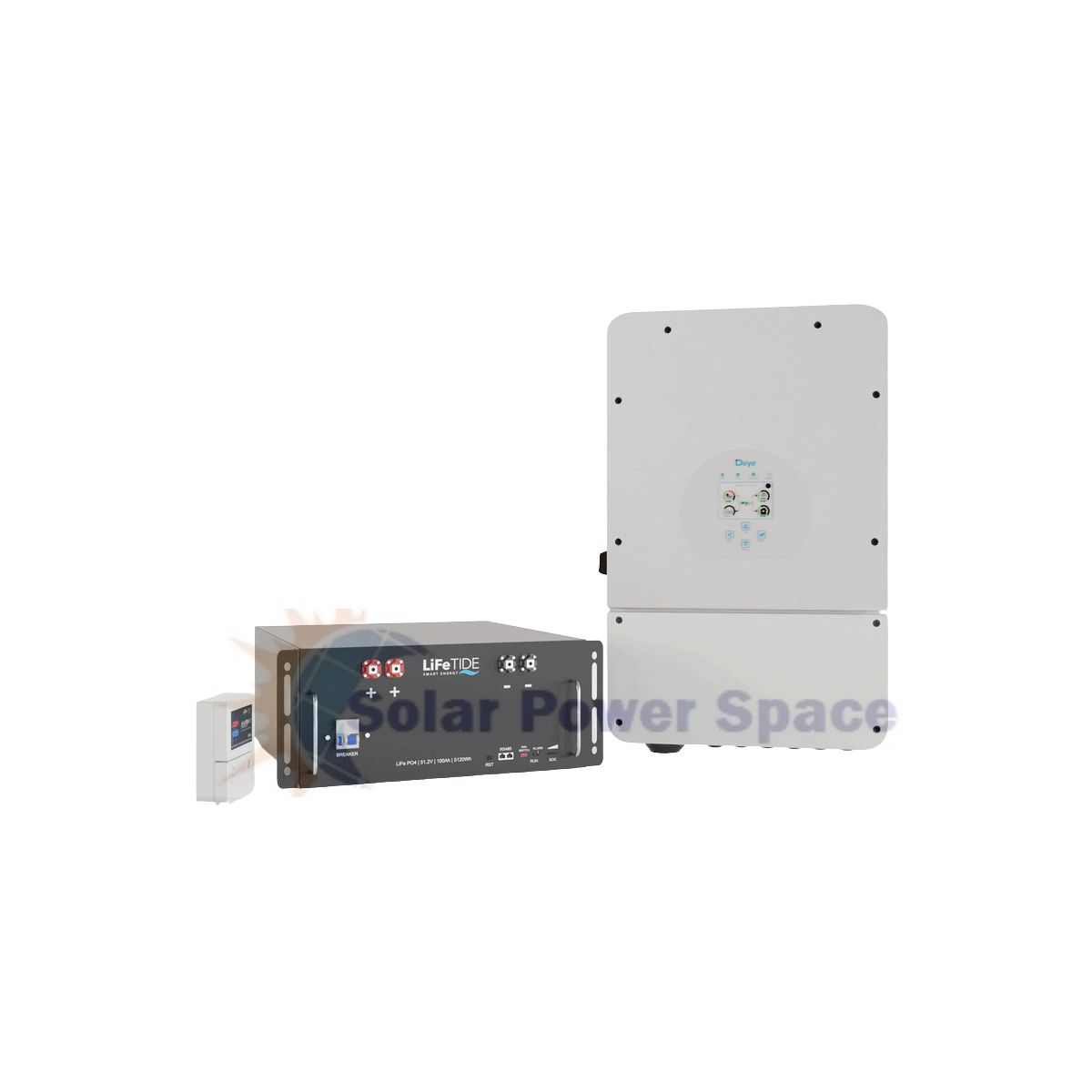

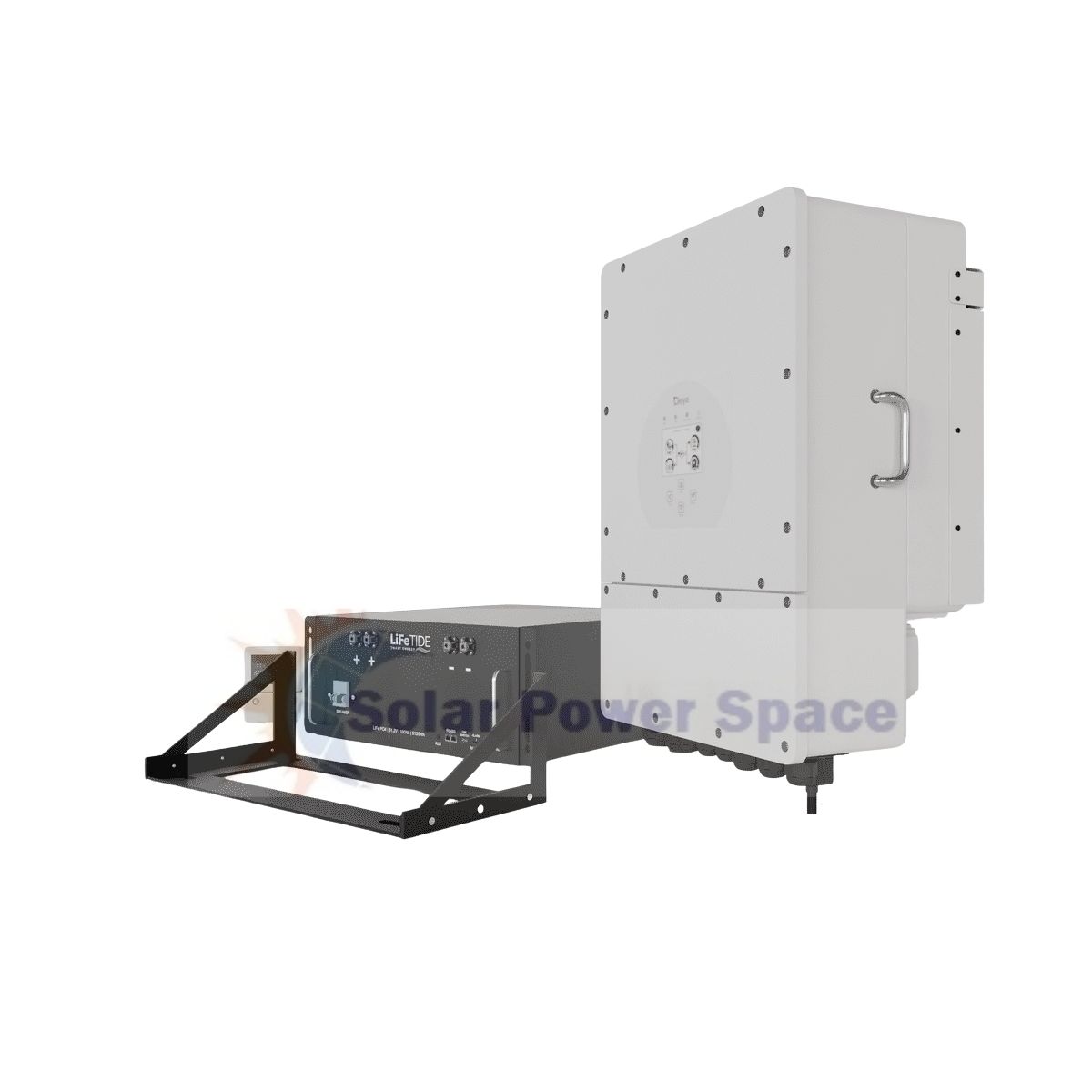

8kW Deye Load Shedding Kit | 5120Wh Battery

Name: 8kW Deye Load Shedding Kit | 5120Wh Battery
Price: 46999.00 ZAR
Availability: InStock

R46 999,00

8kW Deye Load Shedding Kit | 5120Wh Battery

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Deye 8kw Hybrid Solar Inverter
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.

BUY BUNDLE & COMPLETE YOUR SOLAR SYSTEM [PRICE FOR ALL : R49.199]

1 × 10kW AC Essentials Distribution Board

R1 799,00

1 × 60 Amp Automatic Voltage Protector

R849,00


1 × DC Breaker: 2x Nader 125A DC60V-80V – 1 Pole

R549,00

1 × Single Lithium Iron Battery Wall Mount Bracket

R325,00

Description
Reviews (0)

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

8kW Deye Load Shedding Kit | 5120Wh Battery. The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

Buy 5120Wh LiFePO4 Lithium Battery – 6000 Cycles & Fast 2-Hour Recharge, 51.2V 100Ah Lithium Battery for Solar Backup & Off-Grid Power, High-Capacity LiFePO4 Battery – 5120Wh Reliable Energy Storage, Eco-Friendly Lithium Battery for Load Shedding & Solar Systems, Durable Lithium Solar Battery – 5-Year Warranty & 99% Efficiency

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

Ultra-reliable Lithium Iron Phosphate Technology.
High Performance Tier One A+ Cells
Power output = 5.12kW (continuous).
Fully rechargeable in 2 hours.

Robust & Durable:

Can be discharged to 100% DoD.
6,000 Cycles @ 80% DoD
99% Efficiency
Laser Welded Cell Connections

Safe & Secure:

Over-charge, over-discharge & short-circuit protection.
Temperature, Voltage and Current Monitoring
Non-combustible & 100% Recyclable.
Smart Battery Monitoring System
Built-In Fire Extinguisher
Environmentally Friendly & Lead-Free
Built-In Circuit Breaker

General Specification:

Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
Nominal Voltage: 51.2V.
Ah Rating: 100Ah @C1, 25°C.
Rack Mount or Cabinet Storage
Maximum Energy Density

Physical Attributes:

Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
Net Weight: 48.0kg .
5 Year Warranty

Voltage

Voltage: 51.2VDC
Nominal Capacity: 100Ah
Watt Hours: 5120Wh
Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
Float: 54V ± 0.2V
Low DC Cutoff: 47V-44V depending on load
Charing Current: 100A (30A – 50A recommended)
Discharging Current: 100A

Deye Hybrid | 8kW | 48V

THE INVERTER

Experience the incredible versatility of the Deye 8kW Solar Inverter with its innovative blending technology and the ability to cater to both Essential and Non-Essential Loads.

Deye 8kW Hybrid Inverter – Off-Grid & Backup Power Solution, Buy Deye 8kW Solar Inverter – Hybrid System with Smart Monitoring, Deye 8kW Hybrid Inverter – Reliable Load Shedding Backup, Affordable 8kW Hybrid Inverter for Solar Homes & Businesses, Deye 8kW Solar Inverter – Grid-Tied, Hybrid & Backup Ready

This exceptional inverter offers a wide range of applications:

Grid-Tied Inverter: Utilise the inverter with solar panels only, seamlessly connecting to the grid to maximise your solar energy production and reduce your reliance on the utility.
Load Shedding Solution: Use the inverter with batteries only, providing a reliable backup power source during load shedding or grid outages. Keep your essential loads powered and maintain your daily activities uninterrupted.
Hybrid Solution: Enjoy the best of both worlds by harnessing the power of solar energy and the grid. The Deye 8kW Solar Inverter enables you to charge your batteries using solar panels and the grid, ensuring a continuous power supply during outages or load shedding.

Battery Input Data

Battery Type: Lead-acid or Li-lon.
Battery Voltage Range (V): 40-60V.
Max.Charging Current (A): 190A.
Max.Discharging Current (A): 190A.
Charging Curve: 3 Stages/Equalization.
External Temperature Sensor: Optional.
Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

PV String Input Data

Max. DC Input Power (W): 10400W.
PV Input Voltage (V): 370V (100V – 500V).
MPPT Range (V): 125V – 425V.
Full Load DC Voltage Range: 240V – 425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 18A+18A.
No.of MPPT Trackers: 2.
No.of strings per MPPT Tracker: 2+2.

AC Output Data

Rated AC Output and UPS Power (W): 8000W.
Max. AC Output Power (W): 8800W.
Peak Power (off grid): 2 times of rated power, 10 S.
AC Output Rated Current (A): 33.4A/35A.
Max. AC Current (A): 38.3A/40A.
Max Continuous AC Passthrough (A): 50A.
Power Factor: 0.8 leading to 0.8 lagging.
Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
Grid Type: Split phase / 2/3 phase / Single Phase.
Current Harmonic Distortion: THD<3%(Linear Load<1.5%).

General Data

Operating Temparature Range (C): -25-60C, >45C Derating
Cooling: Fan
Noise(dB): <30
Communication with BMS: RS485;CAN
Weight (Kg): 20.5
Size (Length x Widthx Height mm): 670 x 420 x 233mm
Protection Degree: IP65
Installation Style: Wall mounted
Warranty: 5 Years

Weight	84.40 kg
Dimensions	61 × 52 × 92 cm
Brand	LiFeTIDE, Deye
Product Type	Load Shedding Kit
System Phase	Single Phase
System Type	Hybrid
kW Size	8kW
Battery Storage Capacity	5120Wh/battery
Amp Hours (Ah)	100Ah/battery
Battery Cycles	>6000/battery
Depth of Discharge (DoD)	80%
Energy Storage	Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units	16 Batteries, 16 Inverters
Maximum PV Array Power	10400W/inverter
Mounting	Battery Cabinet, Wall Mount
Voltage	48V
Warranty	Manufacturer Warranty Per Item
